Description
FEATURES
● Table surface is precision ground, assuring cutting accuracy.

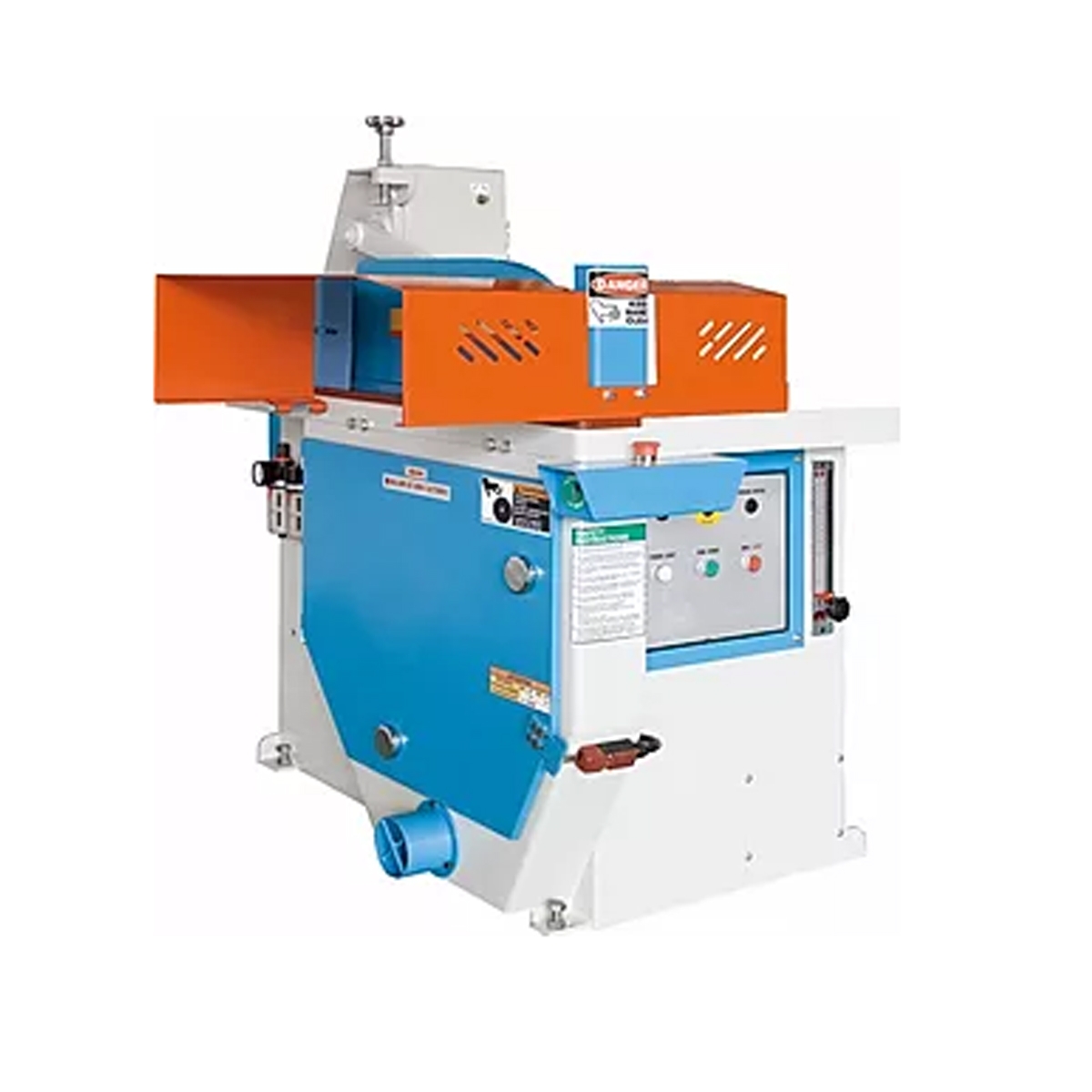

● The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side)
● Cycle speed is adjustable and up to 40 strokes per minute.
● Motion cycle is pneumatic operated and controlled by foot switch. (Option, dual hand buttons)
● Powerful 7.5HP (10HP, 15HP Heavy Duty) motor drive.
● T-clamp is easily adjusted for workpiece thickness variation.
SPECIFICATIONS
● Cutting capacity (Thickness x Width) : 2" x 21", 4" x 19", 6" x 15", 8” X 8”
● Cycle speed : 40 cuts/min
● Cycle operation : Pneumatic
● Saw blade diameter (Option) : 20"/ ø22"/ ø24"
● Saw arbor diameter : ø1"/ 30mm
● Saw blade speed : 2400 rpm
● Dust exhaust diameter : ø4" x (2)
● Saw arbor motor : 10HP/ 15HP
● Table size : 1145X 650mm / 1145X 730mm Heavy Duty
● Net weight : 480 kgs
● Gross weight : 560 kgs
● Packing dimensions(LxWxH)：1360x 900x 1450mm
Roller Conveyor (Option) ● Standard length is 1M. Available in any length. ● Outfeed roller conveyor is with extension stop and aluminum extruded rear fence.
Extension Stop (Option) ● Extension stop is used on outfeed roller conveyor. It is convenient for length stop and for repetitive cutting in a mass production line. ● There are 3 kinds of extension stop, fix stop, flip stop and lift stop.
Safety Switch (Option) ● When operator approaches the cutting area, the safety switch controls T-clamp and unable to cut workpiece.
Safety Guard (Option) ● The complete safety for fast cutting operation and to avoid operator to approach the cutting area.
● Table surface is precision ground, assuring cutting accuracy.
● The sawblade on the left side is standard machine, shown as picture. (Option, the sawbalde on the right side)
● Cycle speed is adjustable and up to 40 strokes per minute.
● Motion cycle is pneumatic operated and controlled by foot switch. (Option, dual hand buttons)
● Powerful 7.5HP (10HP, 15HP Heavy Duty) motor drive.
● T-clamp is easily adjusted for workpiece thickness variation.
SPECIFICATIONS
● Cutting capacity (Thickness x Width) : 2" x 21", 4" x 19", 6" x 15", 8” X 8”
● Cycle speed : 40 cuts/min
● Cycle operation : Pneumatic
● Saw blade diameter (Option) : 20"/ ø22"/ ø24"
● Saw arbor diameter : ø1"/ 30mm
● Saw blade speed : 2400 rpm
● Dust exhaust diameter : ø4" x (2)
● Saw arbor motor : 10HP/ 15HP
● Table size : 1145X 650mm / 1145X 730mm Heavy Duty
● Net weight : 480 kgs
● Gross weight : 560 kgs
● Packing dimensions(LxWxH)：1360x 900x 1450mm
Roller Conveyor (Option) ● Standard length is 1M. Available in any length. ● Outfeed roller conveyor is with extension stop and aluminum extruded rear fence.
Extension Stop (Option) ● Extension stop is used on outfeed roller conveyor. It is convenient for length stop and for repetitive cutting in a mass production line. ● There are 3 kinds of extension stop, fix stop, flip stop and lift stop.
Safety Switch (Option) ● When operator approaches the cutting area, the safety switch controls T-clamp and unable to cut workpiece.
Safety Guard (Option) ● The complete safety for fast cutting operation and to avoid operator to approach the cutting area.
